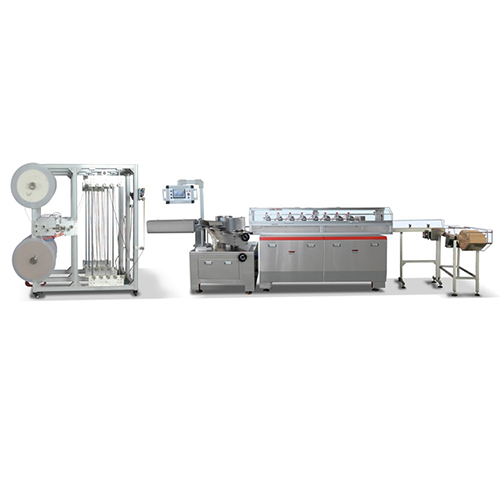

The HS-XGJ-QSF Automatic Non Glue Full Servo Straw Machine is the latest R&D innovation from Wenzhou Hongshuo Machinery, designed to revolutionize eco-friendly paper straw production. Unlike traditional glue-based machines, it integrates automatic paper feeding, tube forming, precision cutting, and finished product collection into one seamless workflow, leveraging a CNC multi-cutter system to deliver ready-to-use paper straws directly. A core highlight is its ability to produce straws that withstand 100°C high temperatures (far exceeding the 70°C limit of ordinary straws) while being fully biodegradable, aligning with global environmental regulations and consumer demand for sustainable packaging. With a running speed of 40-100m/min and compatibility with 3-4 layers of pure wooden pulp paper, this machine balances high productivity with premium quality, making it ideal for large-scale straw manufacturers aiming to replace plastic alternatives.
Raw Material | Pure wooden pulp paper |
Paper Layers | 3-4 layers |
Paper Thickness (from inside to outside) | 120g/m², 120g/m², 60g/m² |
Tube Thickness | 0.3-2mm |
Running Speed | 40-100m/min |
Tube Size | 4.5-12mm |
Cutting System | servo motors, 8 knives |
Cutting Length | 70-1050mm |
Power Source | 380V 50Hz |
Paper Roll Bracket | 1600*2000*1100mm |
Main Part | 2300*860*1270mm |
Collection Part | 1900*970*1770mm |
Weight | 1400kg |
Equipped with PLC control, servo motors, and frequency conversion speed regulation, the machine ensures stable operation and precise parameter adjustment. The touchscreen man-machine interface simplifies operation—even new operators can master settings like cutting length (70-1050mm) and tube size (4.5-12mm) in minutes.
By eliminating glue, it avoids common issues like glue failure in humid/dry weather or residual chemicals. The straws’ tube thickness (0.3-2mm) and layered structure (120g/m² inner/outer layers, 60g/m² middle layer) also enhance hardness, making them more durable than same-thickness glue-based straws.
Built-in sterilization function meets food safety standards (critical for F&B applications). The CNC multi-cutter system (8 knives) reduces product loss significantly, cutting waste rates to less than 1%—a major cost-saving advantage for mass production.
• Food & Beverage Sector: Restaurants, cafes, fast-food chains (e.g., KFC, Starbucks) needing heat-resistant, eco-friendly straws for hot/cold drinks.
• Eco-Friendly Packaging Manufacturers: Businesses focused on biodegradable products to comply with plastic bans (EU, US, and Asian markets).
• Large-Scale Production Facilities: Factories requiring high-speed output (40-100m/min) to meet bulk orders for supermarkets or export.
Q1: Why can the straws withstand 100°C temperatures?
A1: The machine uses a precision forming process that compacts 3-4 layers of pure wooden pulp paper tightly, enhancing heat resistance. Unlike glue-based straws (where glue melts at high temps), the non-glue design avoids structural failure.
Q2: How do I adjust the straw size (diameter/length)?
A2: Use the touchscreen to input target parameters—tube diameter (4.5-12mm) and cutting length (70-1050mm). The servo-driven cutting system will automatically adapt, with no need for manual tool changes.
